ASME B18.9 No.3 Head Plow Bolts
Product: ASME B18.9 No.3 Head Plow Bolts(Round,Countersunk,Square Neck)
Property Class: Gr307A, 307B, 325, A449, A490 2,5,8
Finish:Zinc Plating（Yellow Zinc, Zinc Blue,Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
A plow bolt is a bolt with a special head shape, similar to a bracket bolt, but with a flat head that sits flush once installed. Plow bolts are generally stronger than standard bolts, making them ideal for heavy machinery. Plow bolts have a flat head, a design that makes them commonly used where a domed head needs to be exposed. The flat head design prevents wear and allows the bolt to last longer on scoured surfaces (areas where the bolt head will be exposed to high wear). Plow hitches are suitable for applications requiring high strength and special head designs.

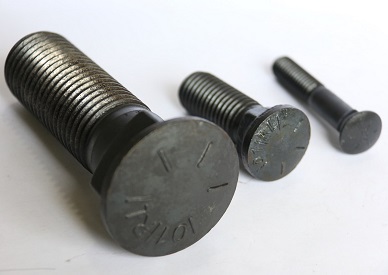

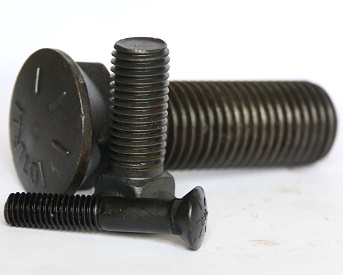

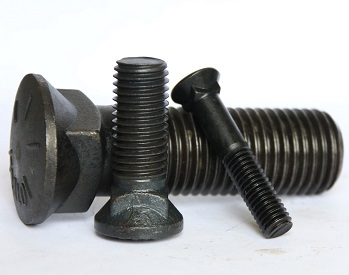

Pictures

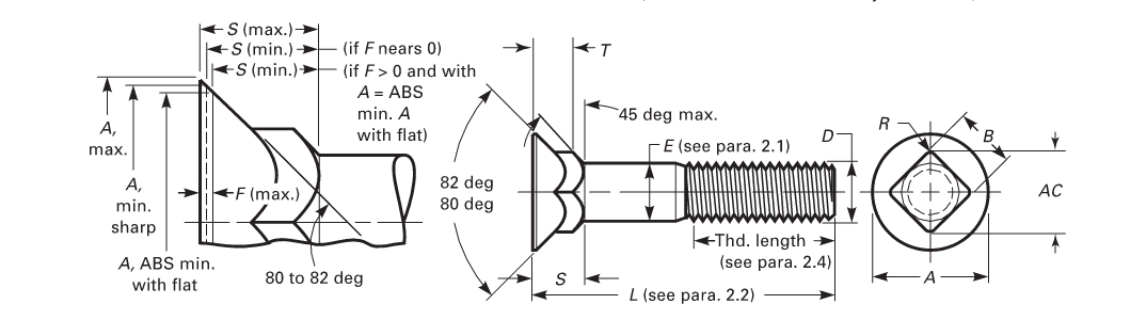

Product drawing
Product Specification
Size | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | |
E | max | 0.312 | 0.375 | 0.438 | 0.500 | 0.5625 | 0.625 | 0.750 | 0.875 | 1.00 |
min | 0.299 | 0.360 | 0.421 | 0.483 | 0.544 | 0.606 | 0.729 | 0.853 | 0.976 | |
A | max | 0.605 | 0.708 | 0.826 | 0.945 | 1.045 | 1.147 | 1.303 | 1.512 | 1.700 |
min sharp | 0.578 | 0.671 | 0.781 | 0.890 | 1.00 | 1.094 | 1.250 | 1.469 | 1.656 | |
ABS min. | 0.538 | 0.624 | 0.729 | 0.831 | 0.924 | 1.013 | 1.169 | 1.344 | 1.532 | |
F | 0.04 | 0.05 | 0.058 | 0.068 | 0.072 | 0.08 | 0.08 | 0.10 | 0.10 | |
S | max | 0.269 | 0.312 | 0.364 | 0.417 | 0.461 | 0.506 | 0.541 | 0.626 | 0.690 |
min | 0.228 | 0.262 | 0.306 | 0.349 | 0.389 | 0.426 | 0.461 | 0.526 | 0.590 | |
T | 0.176 | 0.206 | 0.235 | 0.265 | 0.305 | 0.330 | 0.338 | 0.384 | 0.422 | |
B | max | 0.325 | 0.387 | 0.450 | 0.515 | 0.578 | 0.640 | 0.765 | 0.906 | 1.031 |
min | 0.313 | 0.375 | 0.438 | 0.500 | 0.563 | 0.625 | 0.750 | 0.875 | 1.00 | |
AC | 0.417 | 0.491 | 0.580 | 0.668 | 0.732 | 0.819 | 0.996 | 1.160 | 1.336 | |
R | 0.031 | 0.047 | 0.047 | 0.047 | 0.078 | 0.078 | 0.078 | 0.094 | 0.094 | |
Support customer customization | ||||||||||
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.

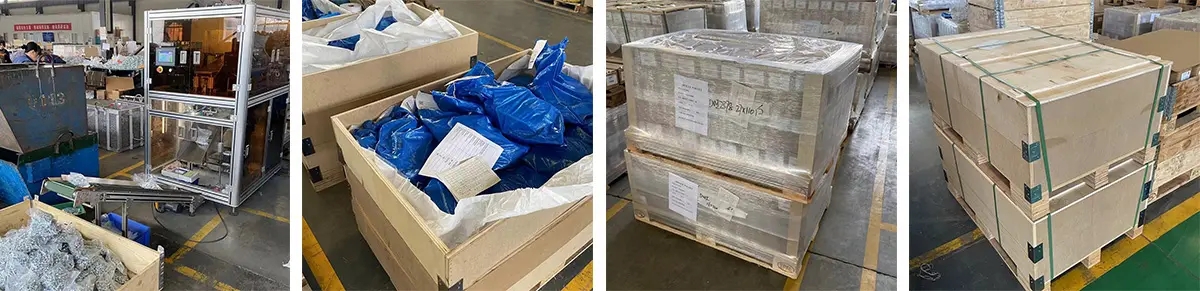

Packing
Service
1. Consultation and selection of ASME B18.9 No.3 plow bolt products
2. If the ASME B18.9 standard model plow bolt does not meet customer needs, the manufacturer can provide customized services
3. Provide fast delivery service
4. Solve the problems encountered by customers when using ASME B18.9 No.3 plow bolt.
FAQ
1. Do your products meet quality requirements?
Of course, we can provide product quality inspection reports and certificates of conformity to ensure that the quality of No. 3 plow bolt products meets ASME B18.9 standards and customer requirements.
2.How much does an ASME B18.9 No.3 plow hitch cost?
We will give you the best offer. Depending on the material, process, quantity and other factors of the ASME B18.9 No.3 plow bolt product that the customer wants, the product price will be different. Your consultation is welcome.
3. Do you have your own factory? Can I visit?
Yes, we have our own factory, specializing in the production of high quality fastener products. We warmly welcome you to visit and can help you better understand our products.
