AS 1110.2 Fully Threaded Hexagon Head bolts
Product: AS 1110.2 Fully Threaded Hexagon Head bolts
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
AS 1110.2 Fully threaded hexagonal bolt is a fastener designed and manufactured in accordance with Australian Standard (AS) 1110.2. Unlike partially threaded bolts, a fully threaded bolt has its entire shaft threaded, which allows it to provide even tension or pressure distribution over a longer distance. The head of the bolt is designed to be hexagonal so that it can be rotated and tightened using a wrench, screwdriver or other appropriate tool. Fully threaded hexagonal bolts are widely used in various situations that require high-strength and reliable connections, such as bridges, buildings, mechanical equipment, vehicles, etc.Due to its fully threaded design, AS 1110.2 fully threaded hexagonal bolts are particularly suitable for applications where thicker materials need to be penetrated or where higher tightening forces are required.

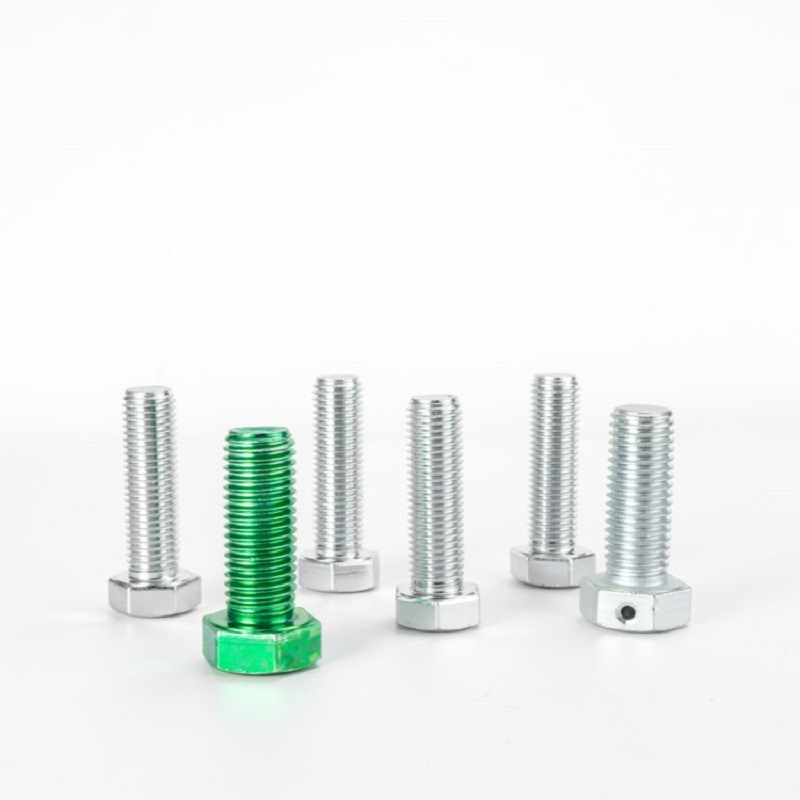

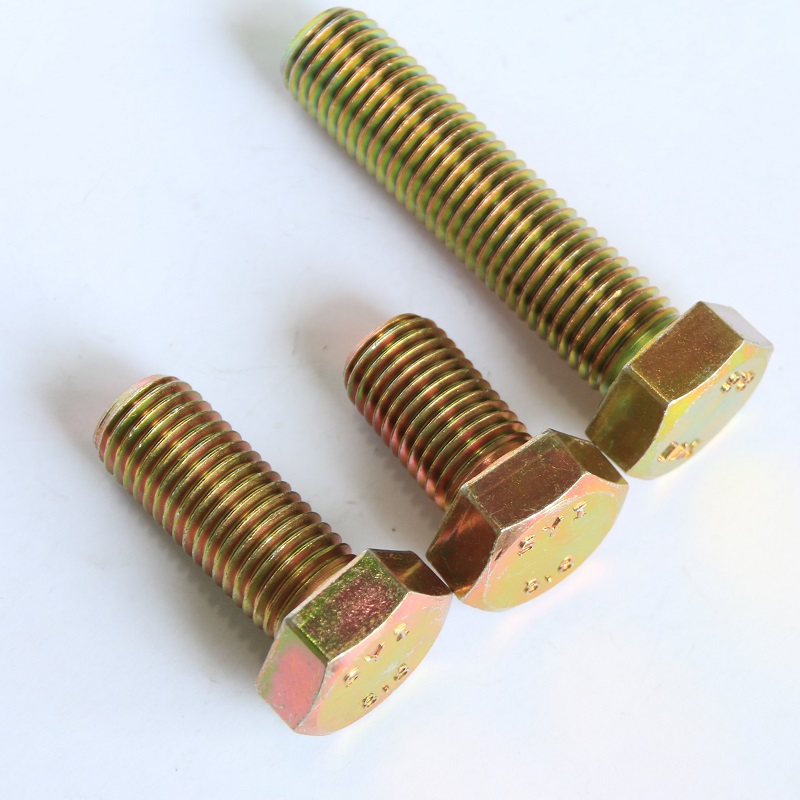

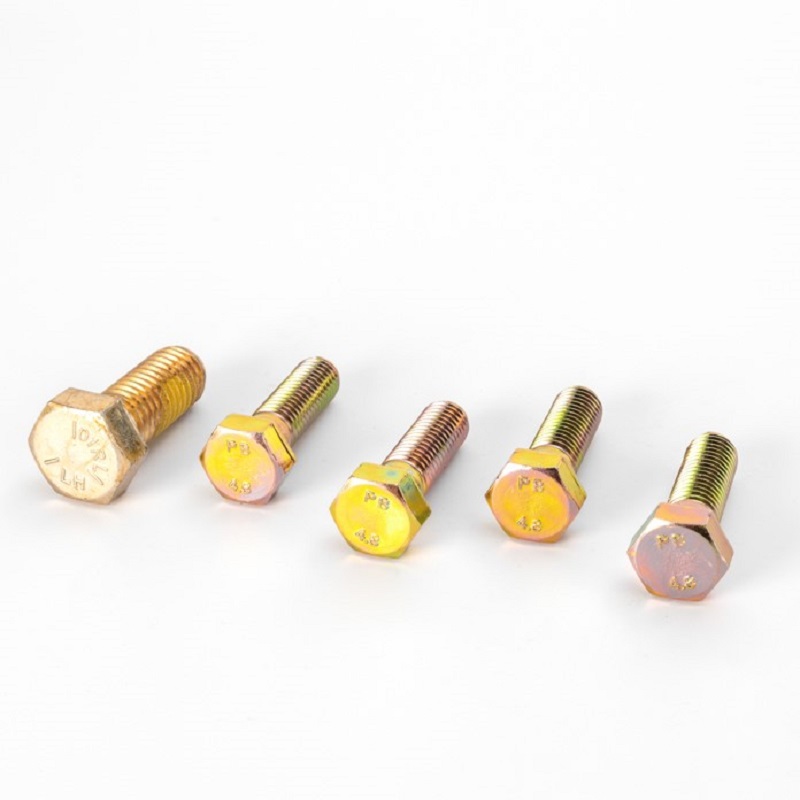

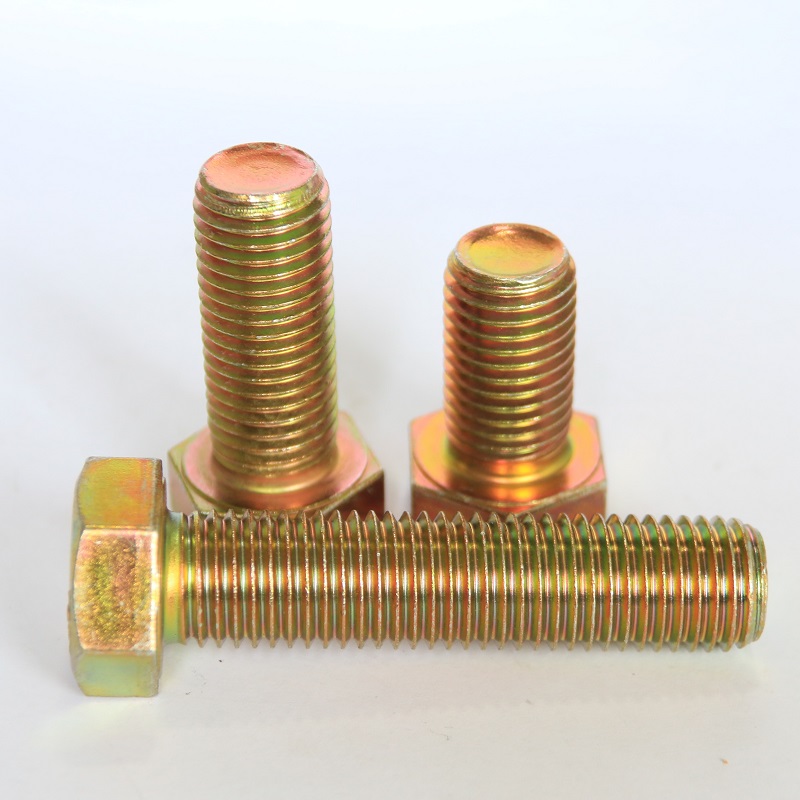

Pictures
4
Product drawing
Product Specification
Size | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | |
P | 0.2|0.35 | 0.25|0.4 | 0.35|0.45 | 0.35|0.5 | 0.35|0.6 | 0.5|0.7 | 0.5|0.8 | 0.75|1 | 1|1.25 | 1|1.25|1.5 | 1|1.25|1.5|1.75 | 1|1.5|2 | 1|1.5|2 | 1.5|2|2.5 | 1.5|2|2.5 | |
da max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | |
e min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | |
k | max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 |
min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | |
r min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | |
s | max | 3.2 | 4.0 | 5.0 | 5.5 | 6.0 | 7.0 | 8.0 | 10.00 | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 |
min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | |
Size(cont. | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | ||
P | 1.5|2|2.5 | 1.5|2|3 | 1.5|2|3.5 | 1.5|2|3.5 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4|4.5 | 1.5|2|3|4|4.5 | 1.5|2|3|4|5 | 1.5|2|3|4|5 | 1.5|2|3|4|5.5 | 1.5|2|3|4|5.5 | 1.5|2|3|4|6 | |||
da max | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63 | 67.0 | 71 | ||
e min | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | ||
k | max | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 | |
min | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | ||
r min | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | ||
s | max | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 | |
min | 33.38 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | ||
Support customer customization | ||||||||||||||||
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force
meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1.Product Consultation & Selection
Star offers professional consultation for AS 1110.2 fully‑threaded hex bolts. We assist customers in selecting proper specifications, materials and performance grades for their applications. Custom bolt solutions are also available per clients’ specific operating conditions and requirements.
2.Product Quality Assurance
All produced bolts comply with AS 1110.2 standards with relevant quality certification documents supplied. Every batch undergoes rigorous inspection and testing prior to shipment to guarantee consistent quality and performance.
3.Customization Services
Star delivers custom‑made bolt products for special project requirements, covering non‑standard sizes, materials, surface treatments and other tailored options.
4.Sample Supply
Prior to formal orders, samples can be supplied for customer testing and evaluation, verifying products meet your expectations and technical requirements.
5.Technical Support
Hotline and online technical support are accessible to address customers’ technical inquiries about bolt products on‑demand.
6.Return & Exchange Policy
Return and exchange service applies to products with confirmed quality defects or non‑conformity issues, to fully safeguard customers’ legitimate rights and interests.
7.Delivery & Logistics
Packaging and labelling can be done as requested to secure products in transit. Flexible shipping options and efficient logistics are available to accommodate urgent orders.
8.Pricing & Payment Terms
Competitive pricing is offered, with volume‑based discounts available for bulk purchases. Multiple payment options are supported to fit different customer requirements.
