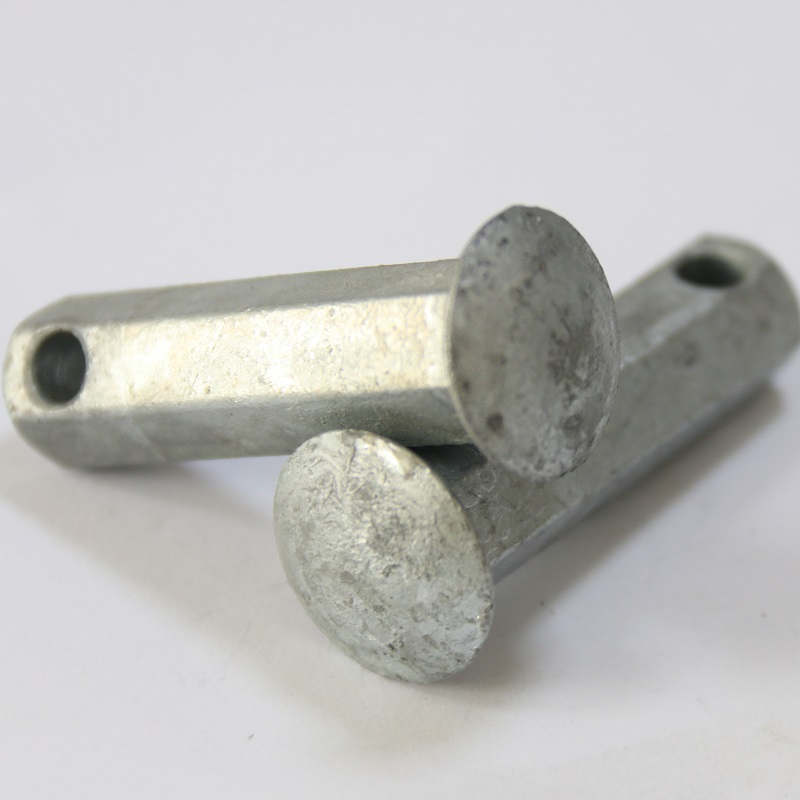

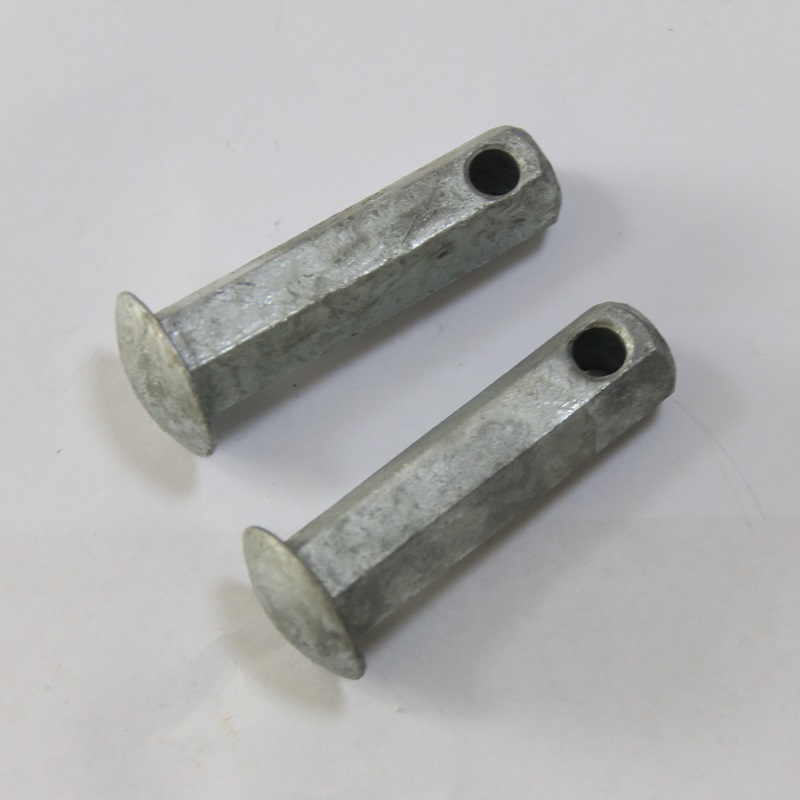

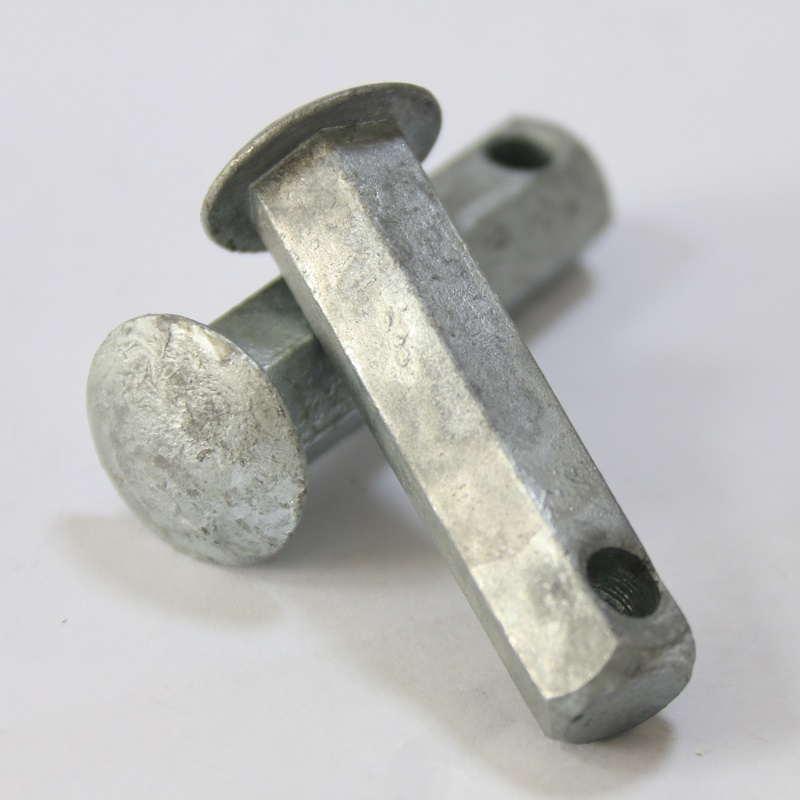

M13×51 Flat Round head Clevis Square Pin With Hole

M13×51 Flat Round Head Clevis Square Pin With Hole: Features and Applications

Introduction
The M13×51 Flat Round Head Clevis Square Pin With Hole is a specialized fastener used in various mechanical and industrial applications. Known for its durability and precision, this pin is designed to provide a secure connection between components that require a non-permanent yet strong fastening solution. The unique design of this clevis pin makes it ideal for use in machinery, structural systems, and equipment that demands both strength and ease of disassembly.

Product drawing

Key Features

1. Flat Round Head Design:
   The flat round head offers a smooth and even surface, which helps distribute the load uniformly, ensuring better stability and secure fastening. This design also provides a more flush fit when compared to other head shapes, reducing interference with surrounding components.

2. Clevis Pin Structure:
   The clevis pin design features a cylindrical shape with a hole at one end for the insertion of a cotter pin or similar locking mechanism. This ensures that the pin remains securely in place during use, preventing any accidental disengagement. The clevis pin is typically used to link two components with a hinge-like function, allowing for pivoting or rotational movement.

3. Square Pin Section:
   The square section of the pin enhances its gripping power within the housing or hole, preventing any rotation or slippage of the pin during operation. This design adds an additional level of security and reduces the risk of failure in high-stress applications.

4. Size and Dimensions:
   The "M13×51" refers to the pin's diameter (13mm) and length (51mm), making it an ideal choice for medium-sized machinery, vehicles, and equipment. The M13 diameter ensures a robust and stable fit, capable of handling a variety of dynamic forces and mechanical stresses.

5. Hole for Cotter Pin:
   A key feature of the M13×51 clevis pin is the hole at the end, which allows for the insertion of a cotter pin or similar locking device. This mechanism secures the pin in place and ensures that it does not shift or come loose during operation, even under heavy loads.

6. Material and Durability:
   Typically made from high-grade steel or stainless steel, the M13×51 clevis pin offers exceptional resistance to wear, corrosion, and fatigue. The material choice makes it suitable for use in both indoor and outdoor environments, even in harsh conditions such as exposure to moisture, chemicals, or extreme temperatures.

Applications

The M13×51 Flat Round Head Clevis Square Pin With Hole is used in a wide range of industries and applications, including:

• Agricultural Equipment:
  In farming machinery such as tractors, plows, and harvesters, clevis pins are essential for securing moving parts, such as linkages and pivot points, where flexibility and durability are required.

• Construction Machinery:
  Clevis pins are widely used in construction equipment like cranes, excavators, and bulldozers, where high-tensile strength and the ability to withstand heavy forces are needed.

• Automotive:
  The clevis pin is often used in automotive systems, such as suspension systems, steering components, and braking mechanisms, to ensure precise alignment and secure connections.

• Aerospace and Aviation:
  In aviation and aerospace applications, clevis pins play a critical role in the assembly of aircraft components, such as control systems and landing gear, providing the necessary strength and reliability.

• Marine:
  Marine vessels use clevis pins for a range of applications, including rigging, deck hardware, and mechanical systems, to ensure stability and functionality in a corrosive environment.

Advantages

• Secure and Reliable:
  The clevis pin with cotter pin hole ensures the pin stays in place during operation, providing a high level of security and reducing the risk of failure in critical applications.

• Easy Installation and Removal:
  The pin's design allows for easy insertion and removal, making maintenance or disassembly fast and convenient without the need for specialized tools.

• Enhanced Load Distribution:
  The flat round head helps distribute forces evenly, minimizing the stress on surrounding materials and ensuring the longevity of the components.

• Corrosion Resistance:
  With materials like stainless steel or zinc-plated coatings, the M13×51 clevis pin offers resistance to rust and corrosion, making it suitable for use in outdoor, marine, and industrial environments.

The M13×51 Flat Round Head Clevis Square Pin With Hole is a versatile, durable, and essential component for many mechanical systems. Whether you're working in agriculture, construction, automotive, or aerospace, this pin provides a secure and efficient solution for linking components and ensuring optimal performance. Its innovative design, combined with its strength and ease of use, makes it an indispensable tool in various industrial sectors.
