IFI 145 Hexagon Flange Nuts
Product: IFI 145 Hexagon Flange Nuts
Finish:Zinc Plating(Yellow Zinc, Zinc Blue,Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
IFI 145 Hex Flange Face Nut is a fastener with specific design and specifications. This kind of nut has a flange surface on the bottom surface of the nut that is slightly larger than the hexagonal surface of the nut. There are some teeth on the flange surface. During installation, tightening the IFI 145 hexagonal flange nut can generate a large area of friction between the IFI 145 hexagonal flange nut and the equipment base using the tooth patterns on the flange surface, thereby achieving the purpose of locking. IFI 145 hexagonal flange nuts comply with the IFI-145 standard and are usually divided into different grades such as American grade 5 and American grade 8 to adapt to different usage needs. IFI 145 hexagonal flange nut is widely used in various mechanical equipment and structures. With its unique design and excellent performance, it provides a reliable solution for equipment fastening

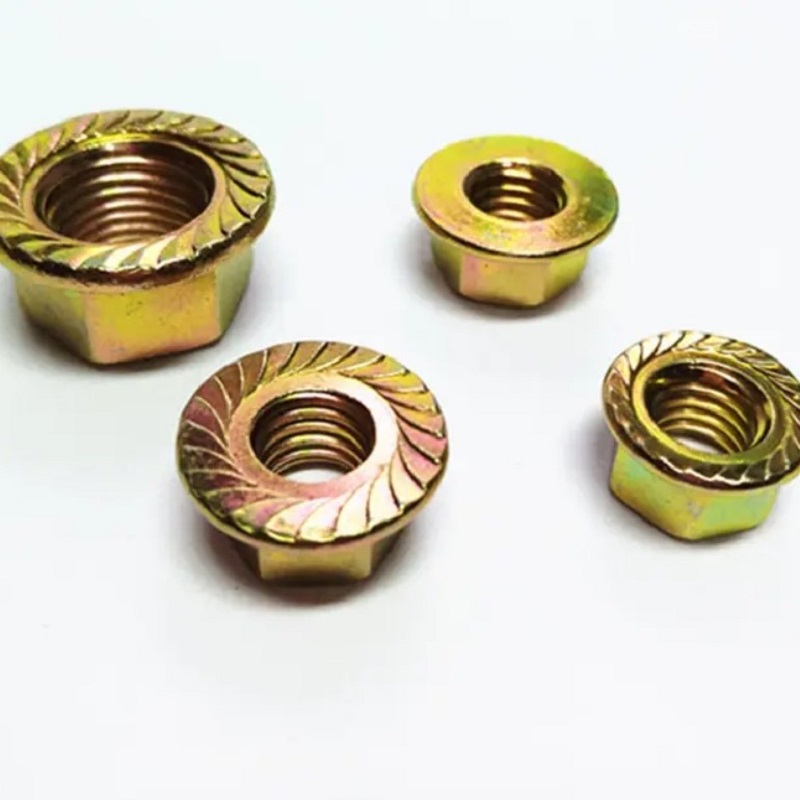

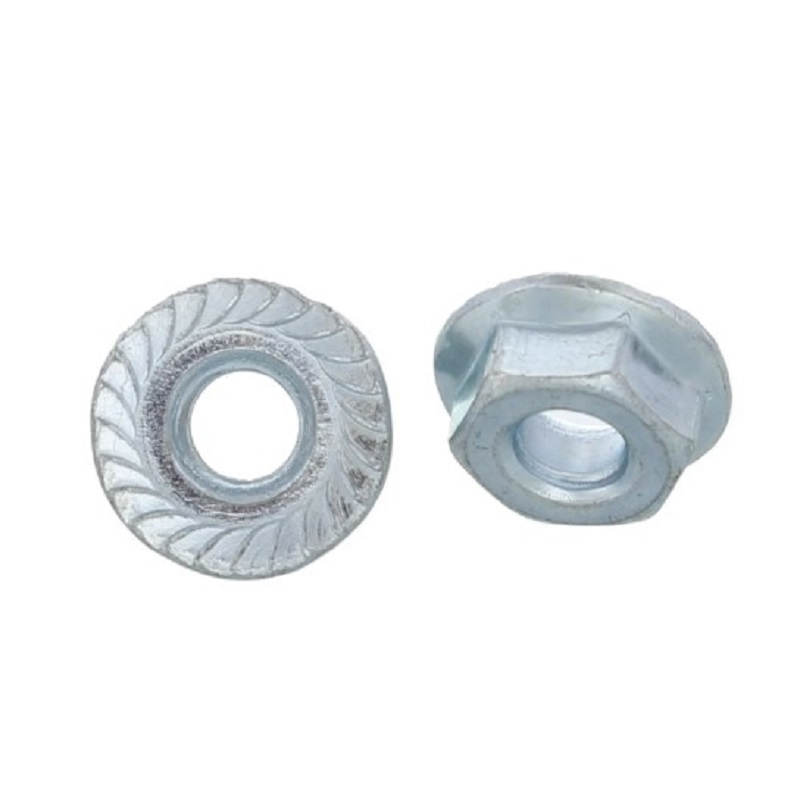

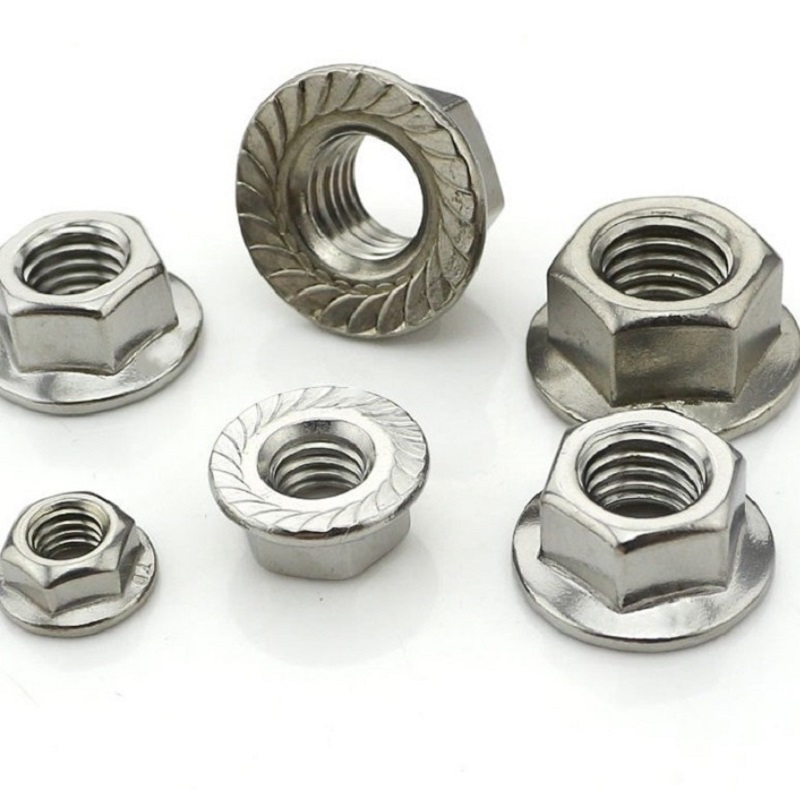

Pictures

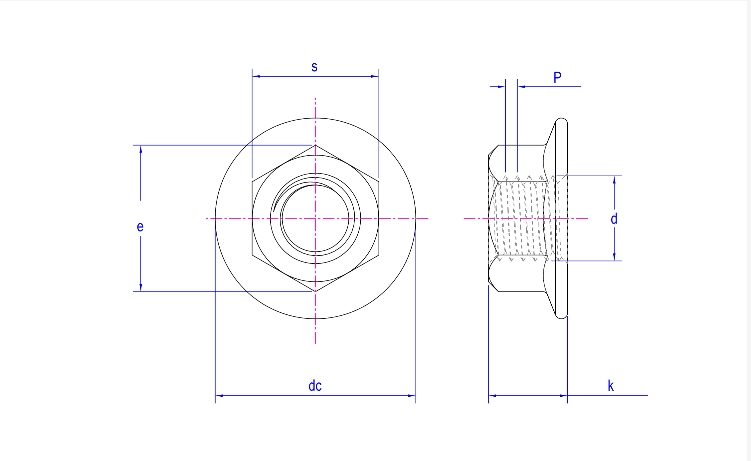

Product drawing
Product Specification
Size | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | |
P | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 | |
s | max | 0.438 | 0.50 | 0.562 | 0.688 | 0.75 | 0.875 | 0.938 | 1.125 |
min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | 1.088 | |
e | max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | 1.299 |
min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | 1.24 | |
dc | max | 0.954 | 0.68 | 0.75 | 0.937 | 1.031 | 1.188 | 1.281 | 1.50 |
min | 0.574 | 0.66 | 0.728 | 0.91 | 1.00 | 1.155 | 1.248 | 1.46 | |
k | max | 0.236 | 0.283 | 0.347 | 0.395 | 0.458 | 0.506 | 0.569 | 0.675 |
min | 0.222 | 0.268 | 0.33 | 0.375 | 0.437 | 0.483 | 0.515 | 0.627 | |
Support customer customization |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.

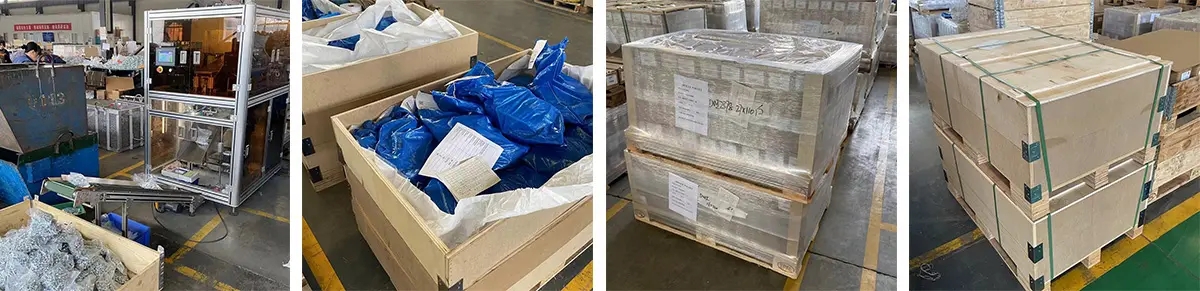

Packing
Service
1. Product certification: Provide certification certificates and test reports for IFI 145 hexagonal nuts to ensure that product quality meets standards.
2. Product customization: Manufacturers can customize the size, material, grade and other parameters of IFI 145 hexagonal nuts according to the specific needs of customers to meet the needs of different application scenarios.
FAQ
1.Is the quality of IFI 145 hexagonal nuts guaranteed?
Answer: IFI 145 hexagonal nut manufacturers produce products in strict accordance with IFI 145 standards and have passed relevant quality certification and testing. At the same time, the manufacturer has also established a complete quality management system and after-sales service system to ensure product quality and customer satisfaction. Therefore, customers can use IFI 145 hex nuts with confidence.
2.How do IFI 145 hex nuts differ from other nuts?
Answer: IFI 145 hexagonal nut has a larger flange surface, which increases the contact area with the connecting piece and improves the stability and load-bearing capacity of the connection. At the same time, it follows the IFI 145 standard and has higher technical requirements and quality assurance.
3.How to choose the right IFI 145 hex nut?
Answer: When selecting IFI 145 hexagonal nuts, you need to consider factors such as the size, material, and stress of the connector. It is recommended that customers consult the manufacturer's technical personnel to choose appropriate specifications and grades based on actual needs.
4.How to install IFI 145 hexagonal nut?
Answer: The installation method of IFI 145 hexagonal nuts is similar to that of ordinary nuts. You need to use tools such as a wrench or screwdriver to screw it into the connection. During the installation process, attention should be paid to keeping the nuts and connectors vertical to avoid tilt or misalignment.
5.What should I do if there is a problem with the IFI 145 hexagonal nut during use?
Answer: If there is a problem with the IFI 145 hexagonal nut during use, such as loosening, breaking, etc., the customer should contact the manufacturer in time and provide relevant information and photos so that the manufacturer can analyze and handle the problem. The manufacturer will provide maintenance, replacement and other solutions based on actual conditions.
